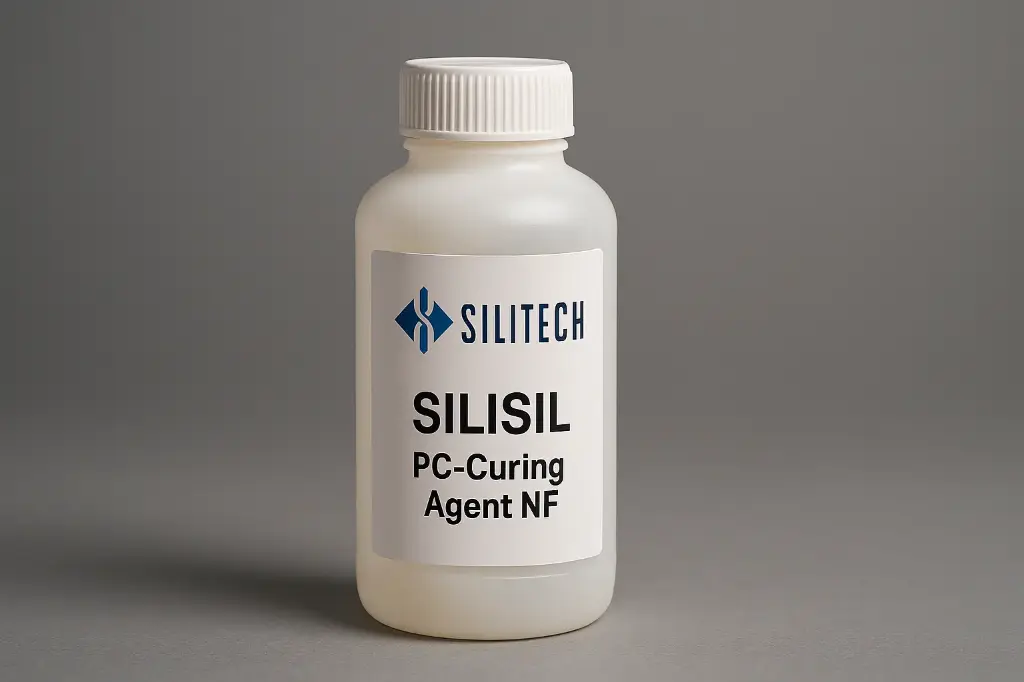

SILISIL PC Curing Agent NF
SILISIL PC-Curing Agent NF — Curing Agent-Silikon, platinvernetzend, ab Schweizer Lager.
SILISIL PC-Curing Agent NF — PC-Curing Agent.
B-component formulated for the PC system. Shipped from our Swiss warehouse with SDS and TDS.
HS code:
3910.0000
SILISIL PC-Curing Agent NF — PC-Curing Agent
SILISIL PC-Curing Agent NF ist der Härter-Bestandteil des SILISIL Platin-Cast 2K-Systems. Die verschiedenen Curing-Agent-Varianten (Standard, PU, NF) sind auf unterschiedliche Basis-Komponenten und Verarbeitungsbedingungen abgestimmt..
product benefits
- 2K addition system with a precisely calibrated mixing ratio
- Shrink-resistant and dimensionally stable even after prolonged storage
- High tear strength and tear propagation resistance
- Excellent detail reproduction, even at the microscopic level
- Long service life when installed properly
- Compatible with standard casting and impression materials
Typical applications
- Electronics Encapsulation: PU Version for PU-Compatible Systems
- Mold Making: Standard Version for Universal Use
- Special Applications: NF Version for Non-Flammable Requirements
- Prototyping: Adaptation to the base component used
Processing and Mixing
- For the exact mixing ratio, pot life, and demolding time, please refer to the technical data sheet (TDS) on this product page
- Before use, stir both components separately and then mix them thoroughly in the specified ratio
- Degassing under vacuum (30–50 mbar) removes air pockets and improves surface quality
- Apply ideally at 23 °C and 40–60% relative humidity
- Contamination from sulfur, amines, tin catalysts, or PVC must be avoided in platinum-cured systems—they prevent curing
Storage and shelf life
- Store in the unopened original container at 5–25 °C, in a dry place and protected from direct sunlight
- Shelf life from the date of manufacture as specified in the TDS — typically 12–24 months
- Close tightly after opening
Included documentation
- Technical Data Sheet (TDS) in German, English, and French
- Safety Data Sheet (SDS) under REACH
- Batch certificate upon request
SILISIL PC-Curing Agent NF wird von SILITECH AG in der Schweiz geprüft und konfektioniert. Für Beratung zur passenden Shore-Härte, zur Wahl zwischen den verschiedenen SILISIL-Reihen oder zur Formulierungsentwicklung stehen Ihnen unsere Silikon-Spezialisten jederzeit zur Verfügung.
Technische Daten zu SILISIL PC-Curing Agent NF
| product information | |
|---|---|
| container | 10 kg |
| container | 50 g, 250 g, 1 kg, 5 kg, 10 kg |
| network type | Addition (Platinum) |
| brand | SILISIL |
| Areas of application | |
|---|---|
| Main application | Formenbau, Elektronik-Verguss |
| Physical properties | |
|---|---|
| Paint cured | Transparent |
| Self-leveling | Yes |
| Electrical Properties | |
|---|---|
| Electrical insulation | Yes |
| product approvals | |
|---|---|
| Certificates | RoHS, REACH |
| food contact | No |
| Suitable for medical use | No |
| General | |
|---|---|
| Density (g/cm³) | 1.17 |
| Viskosität unvernetzt (mPa·s) | 50'000 |
| mixing ratio | 100:5 |
| Pot life (min) | 60 |
| Entformzeit (min) | 24 |
| Tensile strength (MPa) | 2.5 |
| Elongation at break (%) | 450 |
| Reißfestigkeit (N/mm) | 16 |
Verbindliche Werte entnehmen Sie bitte dem technischen Datenblatt (TDS) im Tab "Dokumente".
Häufige Fragen zu SILISIL PC-Curing Agent NF
The most important answers regarding applications, processing, and availability.
SILISIL PC-Curing Agent NF ist ein Curing Agent-Silikon und wird vor allem für Härter-Komponente in 2K-Silikonsystemen eingesetzt.
SILISIL PC-Curing Agent NF ist ein Curing Agent-System, Mischungsverhältnis 100:5, Topfzeit ca. 60 Minuten bei 23 °C, Entformzeit ca. 24 Minuten. Die exakten Werte sind als Produktattribute hinterlegt und im Shop filterbar.
SILISIL PC-Curing Agent NF hat folgende mechanische und physikalische Kennwerte (gemäß TDS, gemessen bei 23 °C): Zugfestigkeit 2.5 N/mm², Bruchdehnung 450 %, Reißfestigkeit (Die B) 16 N/mm, Dichte 1.17 g/cm³, Viskosität (unvernetzt) 50000 mPa·s.
SILISIL PC-Curing Agent NF ist ab Schweizer Lager in verschiedenen Gebindegrössen verfügbar — die genauen Abfüllungen sind als Produktvarianten auf dieser Seite aufgelistet. Für Mengen ausserhalb des Standards oder Mustermengen kontaktieren Sie unseren Vertrieb.
Ihre Frage nicht dabei?
Unser Technik-Team berät Sie persönlich bei Materialauswahl, Verarbeitungsfragen und individuellen Anforderungen — schnell und kompetent.
product specifications
| product information | |
|---|---|
| container | 50 g or 250 g or 1 kg or 5 kg or 10 kg |
| container | 10 kg |
| network type | Addition (Platinum) |
| brand | SILISIL |
| Areas of application | |
|---|---|
| Main application | Mold Making or Electronics Encapsulation |
| Physical properties | |
|---|---|
| Paint cured | Transparent |
| Self-leveling | Yes |
| Electrical Properties | |
|---|---|
| Electrical insulation | Yes |
| product approvals | |
|---|---|
| Certificates | RoHS or REACH |
| food contact | No |
| Suitable for medical use | No |
| Uncategorized | |
|---|---|
| Density (g/cm³) | 1.17 |
| Viskosität unvernetzt (mPa·s) | 50'000 |
| mixing ratio | 100:5 |
| Pot life (min) | 60 |
| Entformzeit (min) | 24 |
| Tensile strength (MPa) | 2.5 |
| Elongation at break (%) | 450 |
| Reißfestigkeit (N/mm) | 16 |
| keywords | |
|---|---|
| keywords | |
Dokumente und Datenblätter
Sicherheitsdatenblätter (SDS) und technische Datenblätter (TDS) zum Download:
