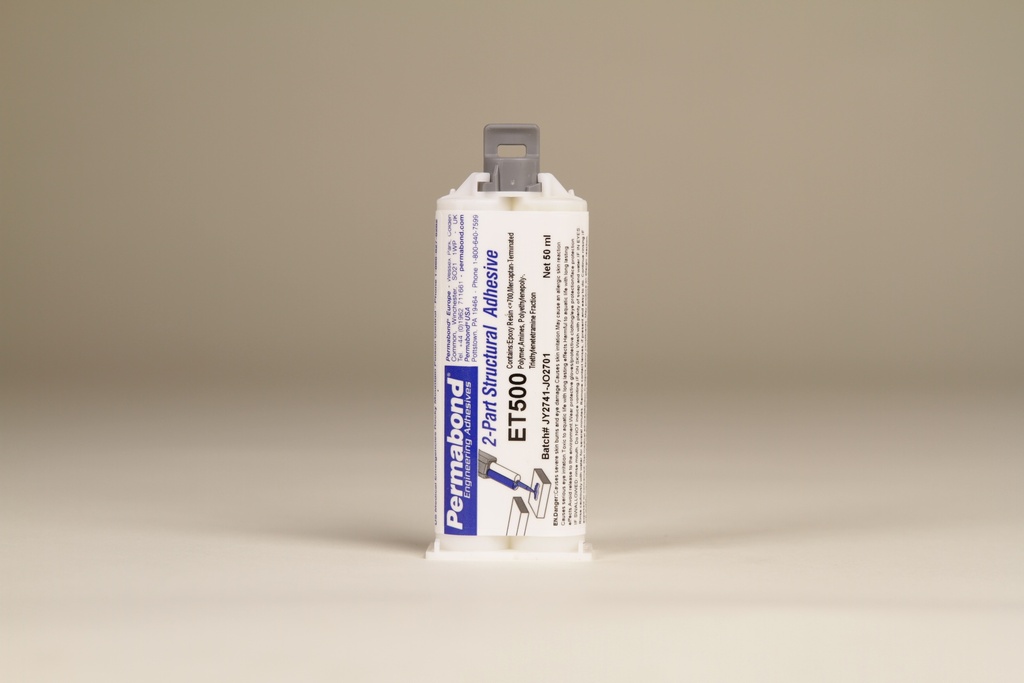

Permabond ET500

https://www.silitech.ch/web/image/product.template/596/image_1920?unique=d7f9a44

Permabond® ET500 is a colorless, fast-curing, two-component epoxy-based adhesive that cures at room temperature and reaches hand strength after approximately 5 minutes.

CHF0.00 0.0 CHF CHF0.00 Excluding taxes

CHF0.00 Exclusive taxes

Price upon request

  • manufacturer
  • brand
  • container
  • Chemical group (A)
  • Color (A)
  • Viscosity (A)
  • Specific gravity (A)
  • Chemical group (B)
  • Color (B)
  • Viscosity (B)
  • Specific gravity (B)
  • country of origin
  • Color
  • Viscosity (adhesives)
  • Viscosity mPa·s
  • Operating temperature (°C)
  • mixing ratio
  • Hardness (Shore D)
  • Storage temperature (°C)
  • Maximum gap width (mm)
  • thermal conductivity
  • steel
  • aluminum
  • zinc
  • Drip time at 23°C
  • Hand strength at 23°C
  • Functional strength
  • ultimate strength
  • Peel resistance (aluminum) (ISO 4578)
  • UFI Part A
  • UFI Part B

This combination does not exist.

Get in touch with us
Metal Ceramic Wood


Terms and Conditions

Shipping usually within 1–3 business days
(availability will be confirmed after ordering)

Express logistics – fast and reliable within Switzerland and Europe

HS code: 3506.9190000

Permabond® ET500 is a colorless, fast-curing, two-component epoxy-based adhesive that cures at room temperature and reaches hand strength after approximately 5 minutes.

SUITABLE SUBSTRATES

It is suitable for a wide range of substrates:

  • wood
  • metal
  • ceramics
  • Many plastic materials
  • composite materials

ADVANTAGES OF PERMABOND® ET500

  • Fast curing
  • Curing at room temperature
  • Excellent adhesion to a wide range of surfaces
  • Easy to use


product specifications

Physical properties
Color transparent
Viscosity (adhesives) High viscosity >5000 mPas
Viscosity mPa·s 13,000–24,000
product information
container 25 ml or 50 ml or 200 ml or 400 ml
manufacturer Permabond Engineering Adhesives Ltd
brand Permabond
country of origin Italy
Operating temperature (°C) -40 to +80
mixing ratio 1:1
Storage temperature (°C) 2-7
Mechanical properties
Hardness (Shore D) 70-80
Shear strength ISO ISO4587 in N/mm²
steel 12-18
aluminum 17-31
zinc 14-27
curing values
Maximum gap width (mm) 2
Drip time at 23°C 3-4 minutes
Hand strength at 23°C 5-8 minutes
ultimate strength 24 hours
Physical properties A
Chemical group (A) epoxy resin
Color (A) Colorless
Viscosity (A) 12,000–18,000
Specific gravity (A) 1,2
UFI Part A E2A0-507C-K009-2WCG
Physical properties B
Chemical group (B) amine hardener
Color (B) Colorless
Viscosity (B) 15,000–30,000
Specific gravity (B) 1,1
UFI Part B QH30-P0S6-900P-SY2K
Performance at ultimate strength
thermal conductivity 0.22 W/(m.K)
Peel resistance (aluminum) (ISO 4578) 5-20 N/25 mm
Properties of the bond
Functional strength 30-60 minutes
