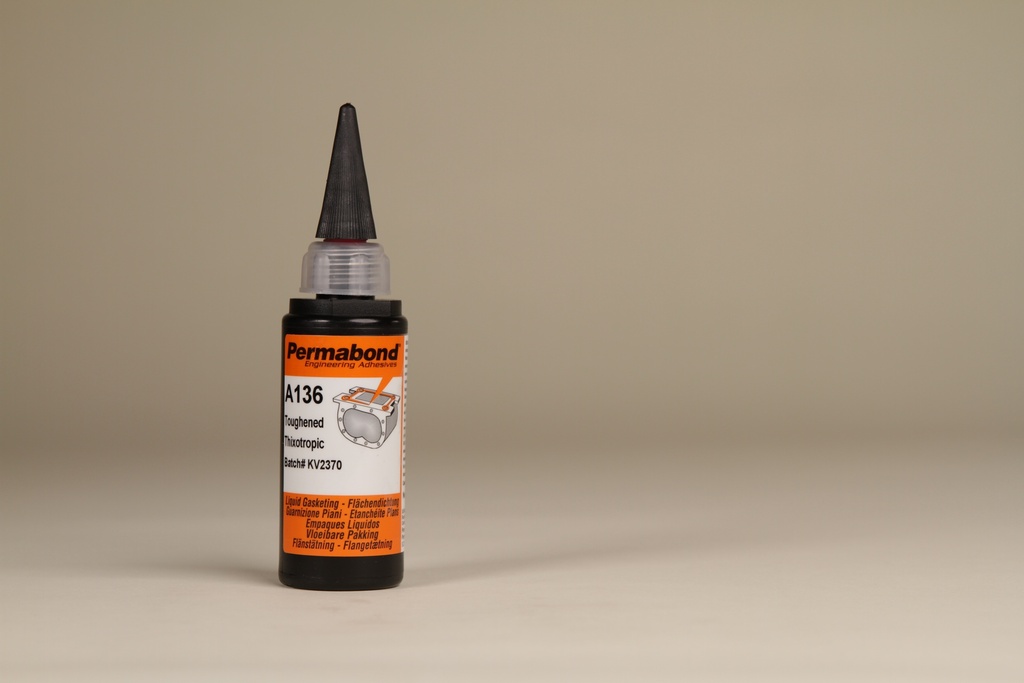

Permabond A136

https://www.silitech.ch/web/image/product.template/571/image_1920?unique=268136d

Permabond® A136 is a red, tough elastic, anaerobic curing product specifically designed for surface and flange sealing. It is an alternative to pre-fabricated gaskets.

CHF0.00 0.0 CHF CHF0.00 Excluding taxes

CHF0.00 Exclusive taxes

Price upon request

  • manufacturer
  • brand
  • container
  • Color
  • country of origin
  • Chemical group
  • Viscosity (adhesives)
  • Viscosity 2 rpm
  • Viscosity 20 rpm
  • fluorescence
  • Maximum gap width (mm)
  • Handling strength (M10 steel)@23°C
  • Functional strength (M10 steel) at 23°C
  • Final strength (M10 steel)@23°C
  • Shear strength (steel ISO10123)
  • thermal expansion coefficient
  • Dielectric strength
  • thermal conductivity
  • Storage temperature (°C)
  • Operating temperature (°C)
  • Torsional strength (M10 steel ISO10964) Breakaway torque
  • Torsional strength (M10 steel ISO10964) Continue

This combination does not exist.

Get in touch with us
Anaerobic WRAS Shaft hub Permabond


Terms and Conditions

Shipping usually within 1–3 business days
(availability will be confirmed after ordering)

Express logistics – fast and reliable within Switzerland and Europe

HS code: 3506.9190000

DESCRIPTION

Permabond® A136 is a red, tough elastic, anaerobic curing product specifically designed for surface and flange sealing. It is an alternative to pre-fabricated gaskets.


SUITABLE SUBSTRATES

Due to its tough elasticity, Permabond® A136 is particularly suitable for bonding materials with different thermal expansion properties.


ADVANTAGES OF PERMABOND® A136

  • WRAS approved for direct contact with drinking water
  • Fluorescent
  • No creep or shrinkage
  • Improved stress distribution
  • No subsequent screw tightening required
  • No residue build-up that could clog narrow channels
  • Ensures metal-to-metal contact (minimum gap up to 0.5 mm)


NOTE ON SURFACE PREPARATION

product specifications

Physical properties
Color red
Chemical group Acrylic single-component
Viscosity (adhesives) High viscosity >5000 mPas
Viscosity 2 rpm 75000
Viscosity 20 rpm 18000
fluorescence Yes
product information
container 50 ml or 200 ml
manufacturer Permabond Engineering Adhesives Ltd
brand Permabond
country of origin Italy
Storage temperature (°C) 5-25
Operating temperature (°C) -55 to 200
curing values
Maximum gap width (mm) 0.5
Handling strength (M10 steel)@23°C <30 Minuten
Functional strength (M10 steel) at 23°C 2 hours
Final strength (M10 steel)@23°C 24 hours
Performance at ultimate strength
Shear strength (steel ISO10123) 12 MPa
thermal expansion coefficient 90 x 10⁻⁶ mm/mm/°C
Dielectric strength 11 kV/mm
thermal conductivity 0.19 W/(m·K)
Torsional strength (M10 steel ISO10964) Breakaway torque 10 N·m
Torsional strength (M10 steel ISO10964) Continue 8 N·m
