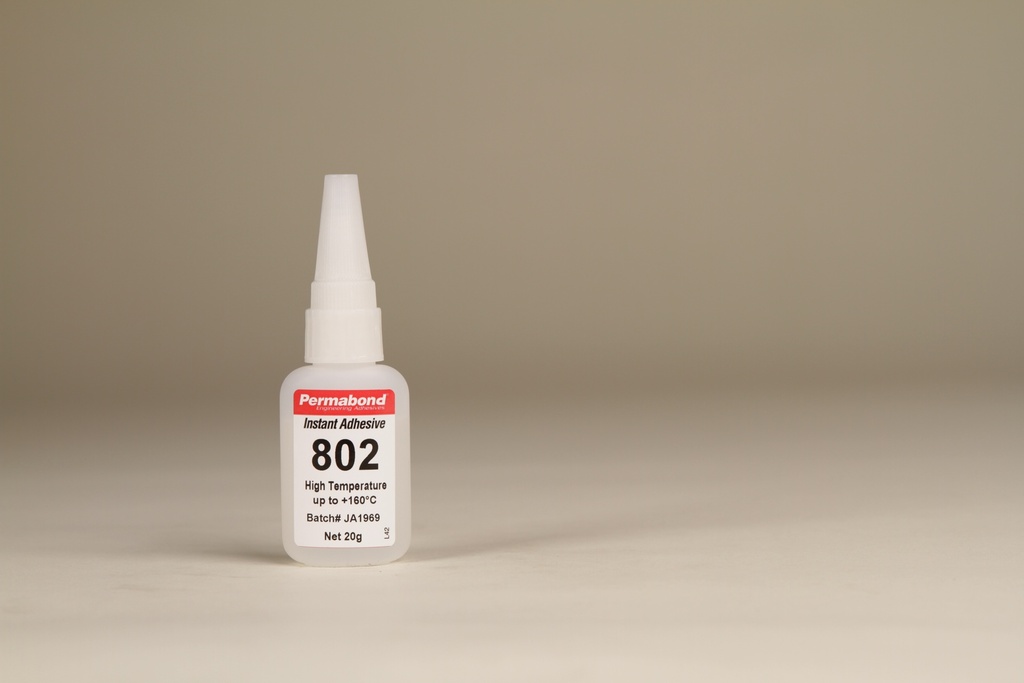

Permabond 802
Low-viscosity, high-strength instant adhesive with excellent high-temperature resistance and increased gap-filling capability.
HS code:
3506.9190000
Permabond® 802 – High-temperature resistant cyanoacrylate adhesive
Permabond® 802 is a high-performance, single-component cyanoacrylate adhesive designed for industrial applications with high temperature requirements. With a medium viscosity of 90–110 mPa·s, it is easy to dispense and offers a gap-filling capability of up to 0.15 mm.
The adhesive cures within 10–15 seconds (depending on the material) and reaches its final strength after 24 hours. It offers excellent adhesion to metals, numerous plastics, and rubber. Thanks to its high temperature resistance, it is ideal for applications in demanding industrial environments.
product features
- High temperature resistant (-55 °C to briefly above +100 °C)
- Fast curing: 10–15 seconds
- Gap filling capacity: up to 0.15 mm
-
High shear strength:
- Steel: 19–23 N/mm²
- ABS: >6 N/mm²*
- PVC: >5 N/mm²*
- Polycarbonate: 6 N/mm²
- Hardness: 85 Shore D
- Chemical basis: ethyl cyanoacrylate
- Color: colorless
-
100% reactive, solvent-free
* Substrate failure
Suitable materials
- Metals (steel, aluminum, copper, etc.)
- Plastics (ABS, PVC, polycarbonate, etc.)
- Rubber (Buna N)
Typical areas of application
- High-temperature component connections in industry and mechanical engineering
- Assembly and repair of rubber and plastic parts
- Precision bonding in the electronics and automotive industries
- Applications with increased gap filling requirements
Processing instructions
- Surface preparation: Keep surfaces to be bonded clean, dry, and free of grease (Permabond Cleaner A recommended).
- Application: Apply a small drop to one surface, then join the parts together, ensuring they are precisely aligned.
- Fixing: Apply even pressure and do not move during curing.
-
Optimization:
- For porous or difficult surfaces, use Permabond CSA Activator.
- For polypropylene, polyethylene, PTFE, or silicone, use Permabond Polyolefin Primer (POP).
- Cleaning: Remove excess adhesive with Permabond CA Solvent.
storage
- Store in a cool place (34–46 °F).
- Bring to room temperature before use to prevent condensation.
product specifications
| Physical properties | |
|---|---|
| Color | colorless |
| Chemical group | Ethyl cyanoacrylate |
| Viscosity (adhesives) | Niedrigviskos <500 MPas |
| Viscosity mPa·s | 90-110 |
| product information | |
|---|---|
| container | 20 g or 50 g or 500 g |
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| country of origin | Italy |
| Operating temperature (°C) | -55 to +165 |
| Storage temperature (°C) | 2-7 |
| Mechanical properties | |
|---|---|
| Hardness (Shore D) | 85 |
| Shear strength ISO ISO4587 in N/mm² | |
|---|---|
| steel | 19-23 |
| polyvinyl chloride | >5 |
| ABS | >6 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 0.15 |
| Steel strength (sec.) | 10-15 |
| Rubber setting time (sec.) | 10-15 |
| Hand strength Phenol (sec.) | 10-15 |
| ultimate strength | 24 hours |
| Performance at ultimate strength | |
|---|---|
| Shear strength polycarbonate | 6 |
| dielectric strength | 25 kV/mm |
