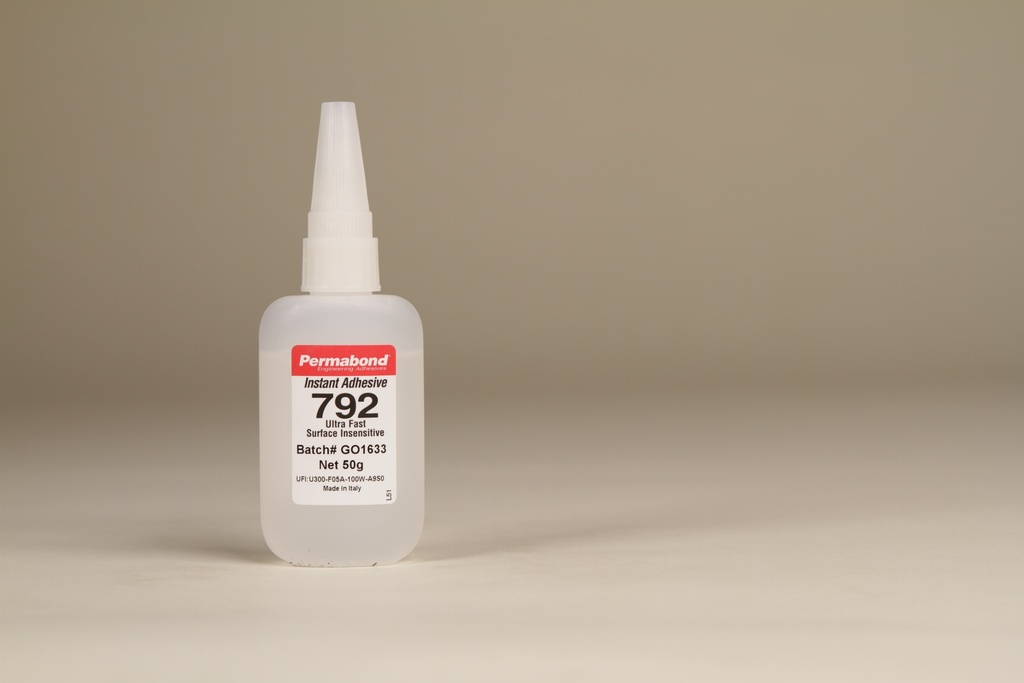

Permabond 792
Extremely fast-curing, high-strength instant adhesive for efficient bonding of a wide variety of materials.
HS code:
3506.9190000
Permabond® 792 – Cyanoacrylate adhesive for fast, high-performance bonding
Permabond® 792 is a high-performance, single-component cyanoacrylate adhesive specially developed for extremely fast bonding of small plastic, rubber, metal, paper, cardboard, and leather parts. With its medium viscosity of 60–125 mPa·s, it is easy to dispense—both manually directly from the container and via automatic dispensing equipment.
Curing takes place within 2–3 seconds (depending on the material), making this adhesive particularly suitable for highly productive manufacturing processes. Final strength is achieved after 24 hours, with high shear and tensile strength values. Permabond® 792 is solvent-free, 100% reactive, and offers excellent temperature and chemical resistance.
product features
- Extremely fast curing (2–3 seconds)
- High shear strength: 18–22 N/mm² (steel)
- Tensile strength: >20 N/mm²
- Gap filling capacity: up to 0.15 mm
- Hardness: 85 Shore D
- Temperature resistance: -55 °C to briefly above +100 °C
- Chemical basis: ethyl cyanoacrylate
- Color: colorless
- Solvent-free, 100% reactive
-
Approvals:
- MIL-A-46050C Type II Class 2
- CID A-A-3097 Type II Class 2
- NSF P1 (Reg. No. 154017) for non-food applications
Suitable materials
- plastics
- Rubber (including Buna N)
- Metals (steel, aluminum, copper, etc.)
- Paper & Cardboard
- leather
Typical areas of application
- Highly productive production lines with short cycle times
- Assembly of small plastic, metal, and rubber parts
- Repairs in industry, trade, and hobbies
- Bonding of seals and O-rings
- Fine repairs in model making and electronics
Processing instructions
- Surface preparation: Keep surfaces clean, dry, and free of grease. Permabond Cleaner A is recommended.
- Application: Apply a small drop to one surface, then join the parts together, ensuring they are precisely aligned.
- Fixing: Apply even pressure and do not move during curing.
-
Optimization:
- For porous/difficult-to-bond surfaces, use Permabond CSA Activator.
- For polypropylene, polyethylene, PTFE, or silicone, apply Permabond Polyolefin Primer (POP) beforehand.
- Cleaning: Remove excess with Permabond CA Solvent 2.
storage
- Store in a cool place (34–46 °F).
- Bring to room temperature before use to prevent condensation.
product specifications
| Physical properties | |
|---|---|
| Color | colorless |
| Chemical group | Ethyl cyanoacrylate |
| Viscosity (adhesives) | Niedrigviskos <500 MPas |
| Viscosity mPa·s | 60-125 |
| product information | |
|---|---|
| container | 20 g or 50 g or 500 g or 10 kg |
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| country of origin | Italy |
| Operating temperature (°C) | -55 to +80 |
| Storage temperature (°C) | 2-7 |
| tensile strength | >20 N/mm² |
| UFI (Unique Formula Identifier) | U300-F05A-100W-A9S0 |
| Mechanical properties | |
|---|---|
| Hardness (Shore D) | 85 |
| Shear strength ISO ISO4587 in N/mm² | |
|---|---|
| steel | 18-22 |
| polyvinyl chloride | >10 |
| ABS | >8 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 0.15 |
| Steel strength (sec.) | 2-3 |
| Rubber setting time (sec.) | 2-3 |
| Hand strength Phenol (sec.) | 2-3 |
| ultimate strength | 24 hours |
| Performance at ultimate strength | |
|---|---|
| Shear strength polycarbonate | 10 |
| dielectric strength | 25 kV/mm |
