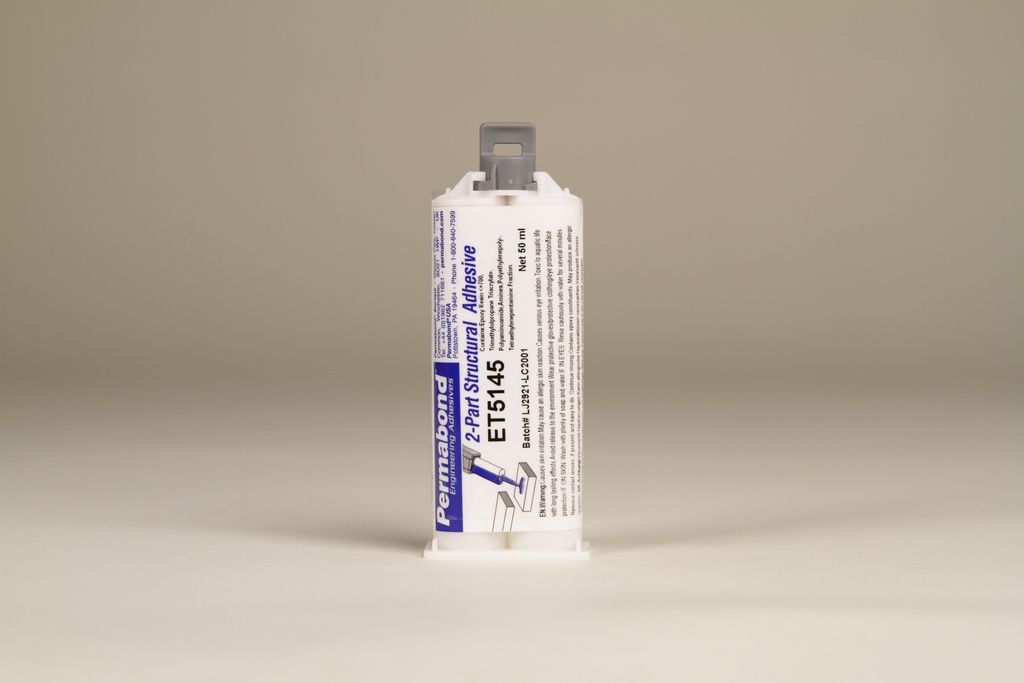

Permabond ET5145

https://silitech.odoo.com/web/image/product.template/1289/image_1920?unique=54029d7

Permabond® ET5145 is a two-component epoxy resin adhesive with excellent vibration resistance. It is impact-resistant and ideal for structural bonding.

CHF0.00 0.0 CHF CHF0.00 Excluding taxes

CHF0.00 Exclusive taxes

Price upon request

  • manufacturer
  • brand
  • container
  • Chemical group (A)
  • Color (A)
  • Viscosity 20 rpm (A)
  • Viscosity 2 rpm (A)
  • Specific gravity (A)
  • Chemical group (B)
  • Color (B)
  • Viscosity 20 rpm (B)
  • Viscosity 2 rpm (B)
  • Specific gravity (B)
  • country of origin
  • Operating temperature (°C)
  • mixing ratio
  • Color
  • Viscosity (adhesives)
  • Hardness (Shore D)
  • Storage temperature (°C)
  • Maximum gap width (mm)
  • steel
  • Drip time at 23°C
  • Hand strength at 23°C
  • Functional strength
  • Functional stability at 60°C
  • Final strength at 23°C
  • Final strength at 60°C
  • Peel resistance (aluminum) (ISO 4578)
  • UFI Part A
  • UFI Part B
  • TG value
  • dielectric strength

This combination does not exist.

Get in touch with us
Metal Wood Thixotropic Composite materials FDA 175.105 FDA 175.3000


Terms and Conditions

Shipping usually within 1–3 business days
(availability will be confirmed after ordering)

Express logistics – fast and reliable within Switzerland and Europe

HS code: 3506.9190000

Suitable substrates

  • metal
  • wood
  • composite materials
  • Certain plastics

Suitable applications

It is suitable for food industry applications as it is made from FDA-compliant raw materials.

Advantages of Permabond® ET5145

  • Complies with FDA 175.105 and 175.300
  • High strength
  • Fast curing at room temperature
  • Excellent aging resistance
  • Excellent shock and vibration resistance
  • Excellent environmental resistance
  • High shear strength and peel force
  • Shockproof
  • Easy to use

product specifications

Physical properties
Color Off-white
Viscosity (adhesives) paste
product information
container 50 ml or 400 ml
manufacturer Permabond Engineering Adhesives Ltd
brand Permabond
country of origin Italy
Operating temperature (°C) -40 to +80
mixing ratio 1:1
Storage temperature (°C) 5-25
Mechanical properties
Hardness (Shore D) 75-85
Shear strength ISO ISO4587 in N/mm²
steel 19-21
curing values
Maximum gap width (mm) 2
Drip time at 23°C 50-80 minutes
Hand strength at 23°C 3-5 hours
Curing speed (oven)
Final strength at 60°C 1 hour
Physical properties A
Chemical group (A) epoxy resin
Color (A) White
Viscosity 20 rpm (A) 50,000-80,000
Viscosity 2 rpm (A) 200,000-300,000
Specific gravity (A) 1.3
UFI Part A WXF0-00K0-100H-SCK5
Physical properties B
Chemical group (B) Polyamine hardener
Color (B) ivory-colored
Viscosity 20 rpm (B) 100,000-200,000
Viscosity 2 rpm (B) 250,000–400,000
Specific gravity (B) 1.3
UFI Part B RDK0-805V-900A-70VR
Performance at ultimate strength
Peel resistance (aluminum) (ISO 4578) 30-50 N/25 mm
dielectric strength 15-25 kV/mm
Properties of the bond
Functional strength 16 hours
Final strength at 23°C 72 hours
Uncategorized
Functional stability at 60°C 30 minutes
TG value +40–50°C
