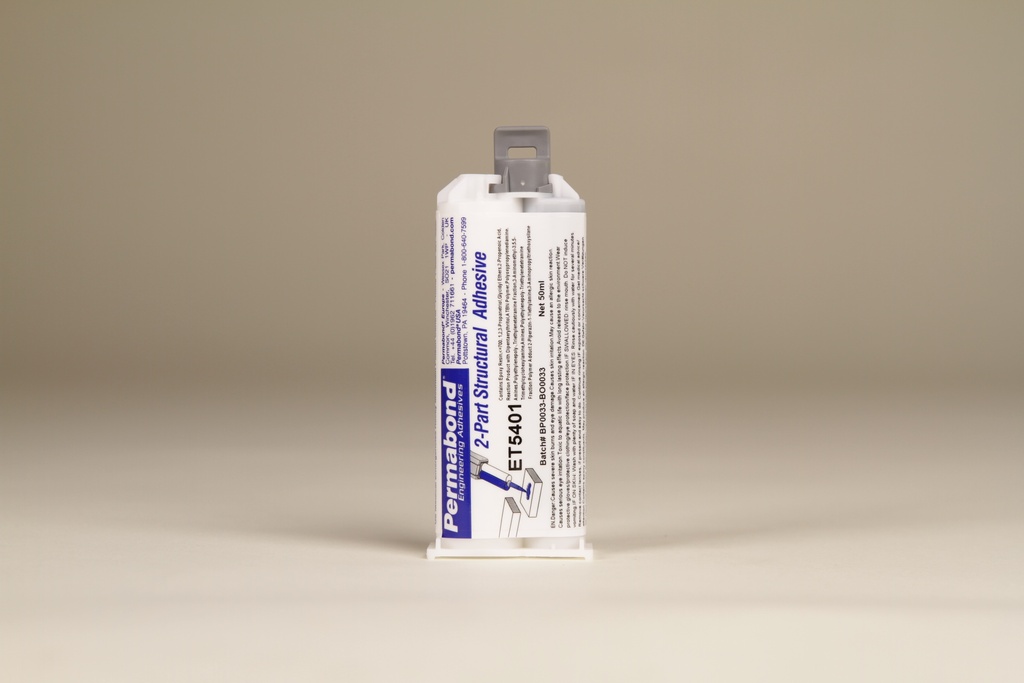

Permabond ET 5441

https://www.silitech.ch/web/image/product.template/3844/image_1920?unique=89d9a3e

Permabond® ET5401 is a semi-flexible, non-shrinking, two-component epoxy adhesive. It provides a high-strength, high-temperature bond. Performance is enhanced by curing at high temperatures or exposure to high temperatures, such as during baking.

CHF0.00 0.0 CHF CHF0.00 Excluding taxes

CHF0.00 Exclusive taxes

Price upon request

  • manufacturer
  • brand
  • container
  • Chemical group (A)
  • Color (A)
  • Viscosity 20 rpm (A)
  • Viscosity 2 rpm (A)
  • Specific gravity (A)
  • Chemical group (B)
  • Color (B)
  • Viscosity 20 rpm (B)
  • Viscosity 2 rpm (B)
  • Specific gravity (B)
  • country of origin
  • Operating temperature (°C)
  • mixing ratio
  • Color
  • Viscosity (adhesives)
  • Hardness (Shore D)
  • Storage temperature (°C)
  • Maximum gap width (mm)
  • Drip time at 23°C
  • Hand strength at 23°C
  • Functional strength
  • Final strength at 23°C
  • Peel resistance (aluminum) (ISO 4578)
  • UFI Part A
  • UFI Part B
  • steel
  • aluminum
  • Glass/polyester
  • Glass/epoxy
  • carbon fiber
  • Peel resistance (aluminum) (ISO 4578)
  • Peel resistance (aluminum)* Cured for 15 minutes at 200°C
  • elongation at break
  • dielectric strength

This combination does not exist.

Get in touch with us
Metal Plastic Ceramic Wood


Terms and Conditions

Shipping usually within 1–3 business days
(availability will be confirmed after ordering)

Express logistics – fast and reliable within Switzerland and Europe

HS code: 3506.9190000






product specifications

Physical properties
Color Amber
Viscosity (adhesives) Thick paste
product information
container 50 ml or 400 ml
manufacturer Permabond Engineering Adhesives Ltd
brand Permabond
country of origin Italy
Operating temperature (°C) -40 to +140
mixing ratio 2:1
Storage temperature (°C) 5-25
Mechanical properties
Hardness (Shore D) 65-75
Shear strength ISO ISO4587 in N/mm²
steel 20-30
aluminum 20-25 N/mm²
Glass/polyester 6-8 N/mm²
Glass/epoxy 19-23 N/mm²
carbon fiber 22-24 N/mm²
curing values
Maximum gap width (mm) 5
Drip time at 23°C 10-12 minutes
Hand strength at 23°C 60-90 minutes
Physical properties A
Chemical group (A) epoxy resin
Color (A) White
Viscosity 20 rpm (A) 60,000–120,000
Viscosity 2 rpm (A) 250,000–450,000
Specific gravity (A) 1.2
UFI Part A 24G0-00XS-N00H-31R9
Physical properties B
Chemical group (B) Polyamine hardener
Color (B) Black
Viscosity 20 rpm (B) 50,000–100,000
Viscosity 2 rpm (B) 150,000–250,000
Specific gravity (B) 1.1
UFI Part B 2281-70HJ-300K-N9A9
Performance at ultimate strength
Peel resistance (aluminum) (ISO 4578) 30-50 N/25 mm, 140-160 N/25 mm
elongation at break 4-8%
dielectric strength 15-25 kV/mm
Properties of the bond
Functional strength 24-48 hours
Final strength at 23°C 4-7 days
Uncategorized
Peel resistance (aluminum)* Cured for 15 minutes at 200°C 250-300 N/25 mm
