Description

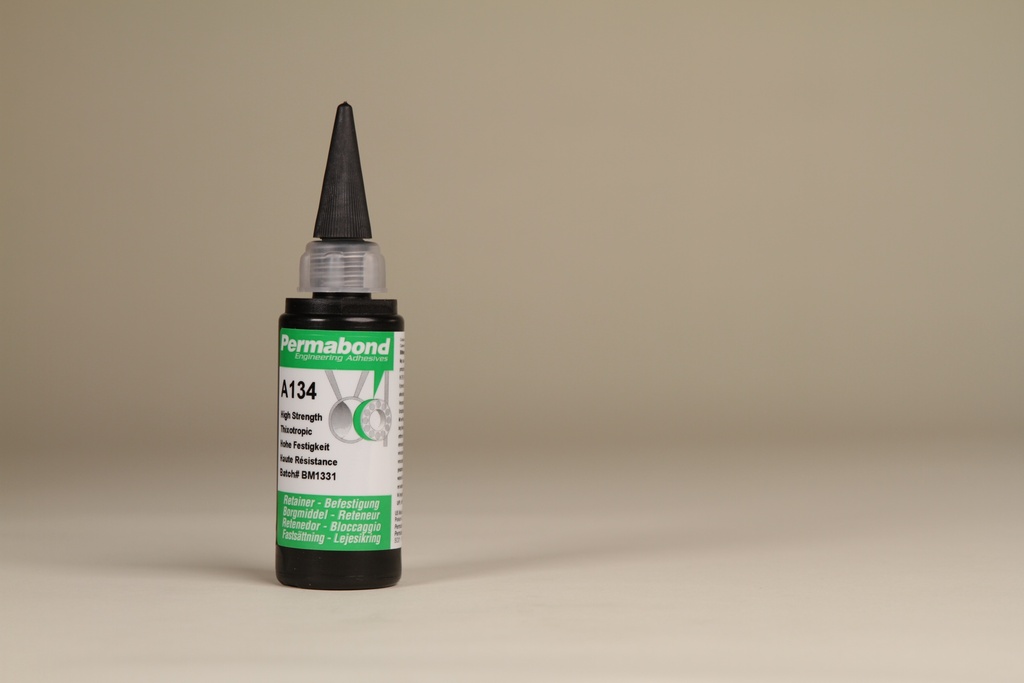

Permabond® A134 is a high-strength anaerobic adhesive for permanently bonding and sealing metal parts. Due to its thixotropic nature, A134 is well suited for bridging larger gaps.
Suitable substrates
Permabond A134 is suitable for metal parts.
Suitable applications
The product is suitable for bonding coarse threads and repairing heavily worn metal parts such as bearings, bushings, and shafts.
Advantages of Permabond® A134
- WRAS approved for contact with drinking water
- Easy to use
- Excellent resistance to chemicals
Note on surface treatment
- For cleaning: Permabond® Cleaner
- To reduce curing time, especially on inactive surfaces such as zinc, aluminum, and stainless steel: Permabond® A905 Surface Activator.
product specifications
| Physical properties | |
|---|---|
| Color | green |
| Chemical group | methacrylate ester |
| Viscosity (adhesives) | High viscosity >5000 mPas |
| Viscosity 2 rpm | 70000 |
| Viscosity 20 rpm | 8000 |
| fluorescence | Yes |
| product information | |
|---|---|
| container | 50 ml or 200 ml |
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| country of origin | Italy |
| Storage temperature (°C) | 5-25 |
| Operating temperature (°C) | -55 to 150 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 0.5 |
| Handling strength (M10 steel)@23°C | 15 minutes |
| Functional strength (M10 steel) at 23°C | 1 hour |
| Final strength (M10 steel)@23°C | 24 hours |
| Performance at ultimate strength | |
|---|---|
| Shear strength (steel ISO10123) | 21 MPa |
| thermal expansion coefficient | 90 x 10⁻⁶ mm/mm/°C |
| Dielectric strength | 11 kV/mm |
| thermal conductivity | 0.19 W/(m·K) |
| Torsional strength (M10 steel ISO10964) Breakaway torque | 30 N·m |
| Torsional strength (M10 steel ISO10964) Continue | 50Nm |
| keywords | |
|---|---|
| keywords | |
