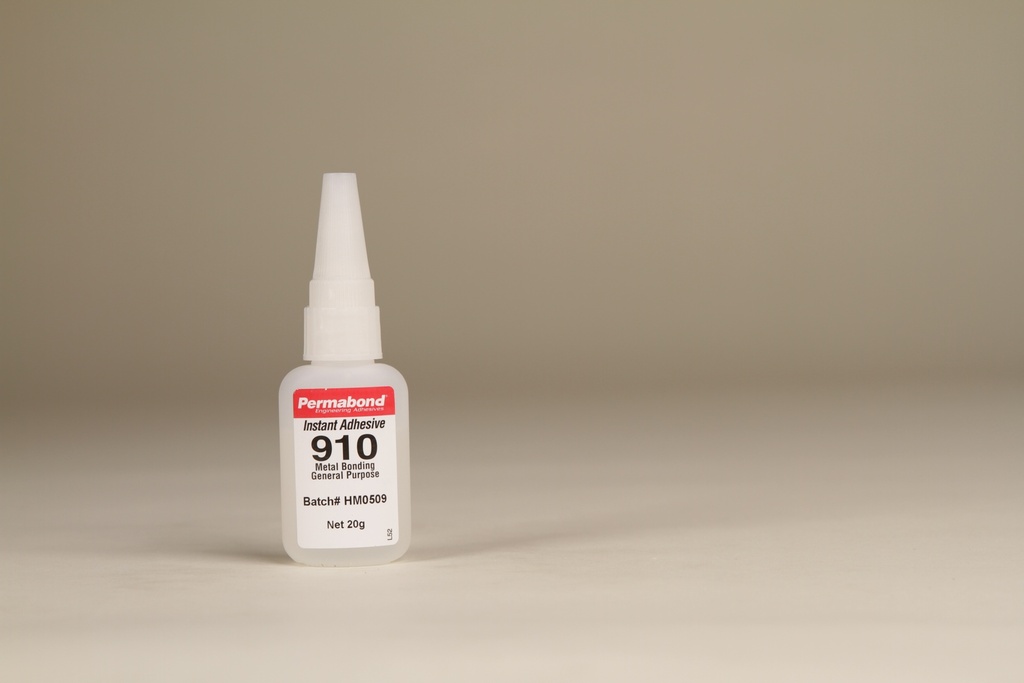

Permabond 910
High-strength, fast-curing instant adhesive for metal, ideal for industrial applications with precise dosing and high temperature resistance.
HS code:
3506.9190000
Permabond® 910 Metal Cyanoacrylate Adhesive – High-strength instant adhesive for precise metal bonding
Permabond® 910 is a high-performance methyl cyanoacrylate adhesive that has been specially developed for fast and reliable bonding of metal surfaces. Thanks to its excellent dosability, short curing time, and high shear strength, it is the perfect choice for industrial applications where precision and strength are required.
The application is very simple: the adhesive can be applied directly from the bottle or processed using automated application systems – ideal for series production. Its formulation enables reliable adhesion even with difficult metal connections, as well as good resistance to chemicals and temperatures up to over 150 °C (for short periods).
product features
- Excellent adhesion to metal (e.g., steel, stainless steel, brass, aluminum)
- Fast curing: Handling strength within 10–15 seconds
- High shear strength up to 29 N/mm²
- Easy to use without mixing
- Viscosity: 70–90 mPa·s at 25°C
- Gap filling capacity: up to 0.15 mm
- Temperature resistant from -55°C to over 150°C (for short periods)
- Dielectric strength: 25 kV/mm
- Thermal conductivity: 0.1 W/(m·K)
- Hardness: 85 Shore D
- Approved according to MIL-A-46050C & CID A-A-3097
Suitable materials
- Metals: steel, stainless steel, aluminum, brass
- Plastics: ABS, acrylic, PVC, polycarbonate
- Elastomers: butyl rubber, nitrile rubber
- phenolic resins
Typical areas of application
- Precision engineering and metalworking
- automotive industry
- Electrical engineering and sensor technology
- Mechanical and plant engineering
- Manufacture of precision components
- Repair and maintenance
Processing instructions
- Clean and degrease the bonding surfaces (e.g., with Permabond Cleaner A) and roughen them slightly if necessary.
- Apply a thin layer of adhesive to one side (one drop is sufficient).
- Fit the parts together precisely and hold them in place for a few seconds.
- Remove excess adhesive with Permabond CA Solvent.
- For porous or difficult-to-bond surfaces, use Permabond CSA Activator.
- For polyolefins such as PE or PP, pre-treat with Permabond POP Primer.
- Store adhesive in a cool place (2–7 °C) and bring to room temperature before use.
product specifications
| Physical properties | |
|---|---|
| Color | colorless |
| Chemical group | Methyl cyanoacrylate |
| Viscosity (adhesives) | Niedrigviskos <500 MPas |
| Viscosity mPa·s | 70-90 |
| product information | |
|---|---|
| container | 20 g or 50 g or 500 g |
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| country of origin | Italy |
| Storage temperature (°C) | 2-7 |
| Operating temperature (°C) | -55 to +90 |
| tensile strength | >20 N/mm² |
| UFI (Unique Formula Identifier) | AM60-W0MG-A00H-K81W |
| Mechanical properties | |
|---|---|
| Hardness (Shore D) | 85 |
| Shear strength ISO ISO4587 in N/mm² | |
|---|---|
| steel | 23-29 |
| aluminum | 13-15 |
| phenol | >10 |
| ABS | >9 |
| polyvinyl chloride | >6 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 0.15 |
| Steel strength (sec.) | 10-15 |
| Rubber setting time (sec.) | 10-15 |
| Hand strength Phenol (sec.) | 10-15 |
| ultimate strength | 24 hours |
| Performance at ultimate strength | |
|---|---|
| Shear strength acrylic | >14 |
| Shear strength polycarbonate | >6 |
| dielectric strength | 25 kV/mm |
| Uncategorized | |
|---|---|
| brass | 21 |
| stainless steel | 21 |
| Butyl rubber | >2 |
| Nitrile rubber | >4 |
