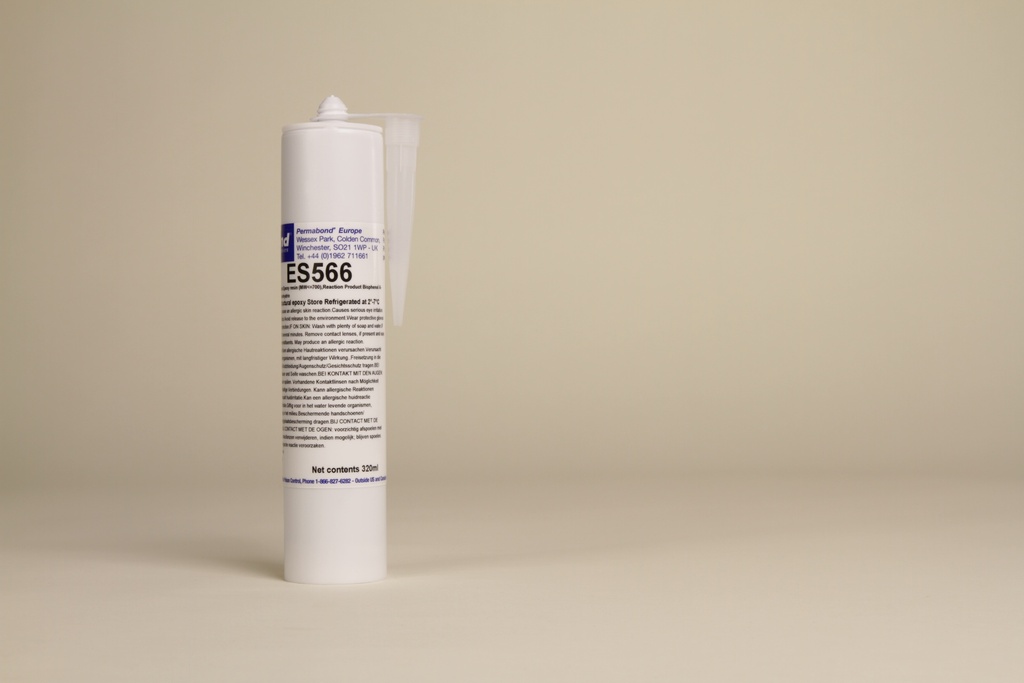

Permabond ES566
Permabond® ES566 is a gray, paste-like, one-component epoxy resin adhesive that flows similarly to solder when heated (during curing).
Internal reference:
49-566.KT.G320
HS code:
3506.9190000
Permabond® ES566 is a gray, paste-like, single-component epoxy adhesive that flows like solder when heated (during curing). Its high adhesive strength makes it a suitable replacement for joining methods such as riveting and welding. Curing at 25 °C takes only 25 minutes and can also be carried out at low temperatures of 90 °C.
SUITABLE SUBSTRATES
It achieves excellent adhesion on the following materials:
- metals
- composite materials
- Plastics that are difficult to bond, such as nylon and PBT
ADVANTAGES OF PERMABOND® ES566
- High adhesive strength
- Fast curing at lower temperatures
- Convenient application without mixing
- High shear and peel strength
- High temperature resistance
product specifications
| Physical properties | |
|---|---|
| Color | gray |
| Chemical group | epoxy resin |
| Viscosity (adhesives) | High viscosity >5000 mPas |
| Viscosity 2 rpm | 150,000–300,000 |
| Viscosity 20 rpm | 60,000–120,000 |
| Specific gravity | 1.3 |
| product information | |
|---|---|
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| container | 320 ml |
| country of origin | Italy |
| Operating temperature (°C) | -40 to +180 |
| Storage temperature (°C) | 2-7 |
| UFI (Unique Formula Identifier) | 0UM0-0UWM-G00Q-FTSU |
| Mechanical properties | |
|---|---|
| Hardness (Shore D) | >70 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 2 |
| Curing speed (oven) | |
|---|---|
| 90°C | 75 minutes |
| 100°C | 40 minutes |
| 120°C | 25 minutes |
| 150°C | 10 minutes |
| Performance at ultimate strength | |
|---|---|
| thermal expansion coefficient | 45 x 10⁻⁶ mm/mm/°C |
| Uncategorized | |
|---|---|
| Curing speed (induction) | <3 Minuten |
