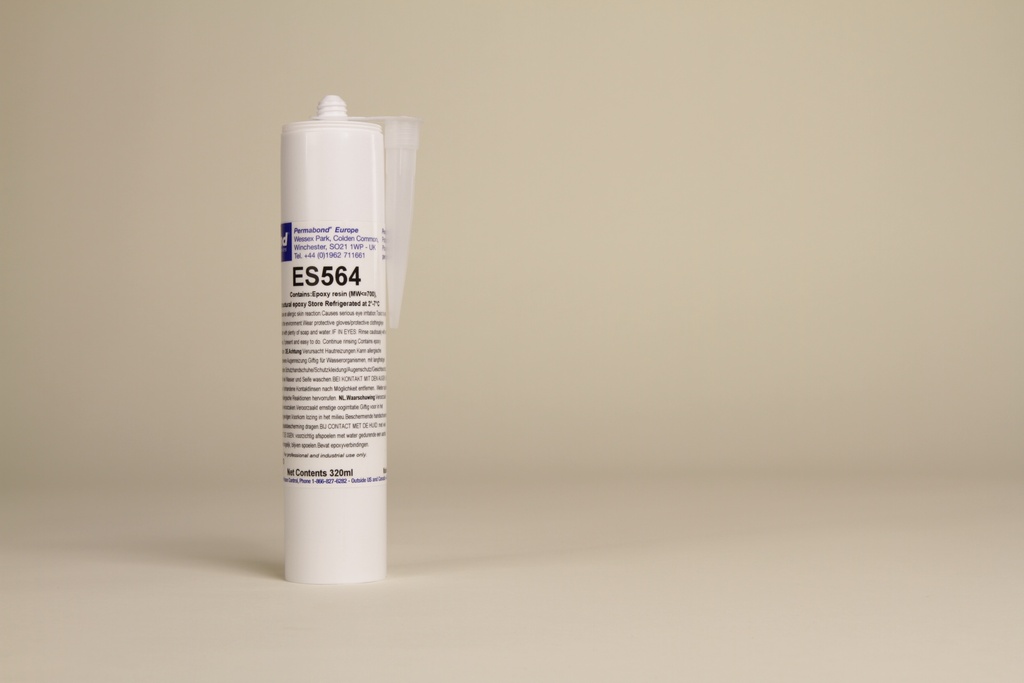

Permabond ES564
PERMABOND® ES564 is a one-part, thermosetting adhesive designed for use when bonding plastics or other heat-sensitive components.
documents
Internal reference:
49-564.KT.G320
HS code:
3506.9190000
PERMABOND® ES564 is a one-part, thermosetting adhesive designed for use when bonding plastics or other heat-sensitive components. It is electrically non-conductive and offers excellent chemical and temperature resistance. It has good gap-filling capabilities and can be easily applied by hand or with automated dispensing equipment.
product specifications
| Physical properties | |
|---|---|
| Color | black |
| Viscosity 20 rpm | 50,000–180,000 |
| Chemical group | epoxy resin |
| Viscosity (adhesives) | High viscosity >5000 mPas |
| product information | |
|---|---|
| manufacturer | Permabond Engineering Adhesives Ltd |
| brand | Permabond |
| container | 320 ml |
| country of origin | Italy |
| Operating temperature (°C) | -40 to +180 |
| Storage temperature (°C) | 2-7 |
| UFI (Unique Formula Identifier) | 6VX0-20P2-A00M-VRYD |
| Mechanical properties | |
|---|---|
| Hardness (Shore D) | >70 |
| Shear strength ISO ISO4587 in N/mm² | |
|---|---|
| steel | 12-14 |
| curing values | |
|---|---|
| Maximum gap width (mm) | 2 |
| Curing speed (oven) | |
|---|---|
| 100°C | 45 minutes |
| 120°C | 20 minutes |
| 130°C | 15 minutes |
| Uncategorized | |
|---|---|
| Curing speed (induction) | <3 Minuten |
